High Accuracy Automatic Silicone Epoxy PU CNC 2 Part Epoxy Dispensing Equipment

Model NO. : PGB-700

Installation : Vertical

Driven Type : Electric

Glue & Ratio : 1:1 to 20:1, Epoxy, Silicone, PU, UV

Certificate : Ce, SGS

Xyz Working Area : 700*700*80mm

Flow Speed : 0-66g/5s, or Customized

Additional Function : Heating, Vacuum, Self-Refilling, Self-Cleaning

Transport Package : Wood Box

Specification : 1500x1200x1500mm

Trademark : DH

Origin : China

After-sales Service : One Year

Precision : High Precision

Condition : New

Certification : CCC, CE

Warranty : 12 Months

Automatic Grade : Automatic

Customization : Available | Customized Request

Contact Now

High Accuracy Automatic Silicone Epoxy PU CNC 2 Part Epoxy Dispensing Equipment

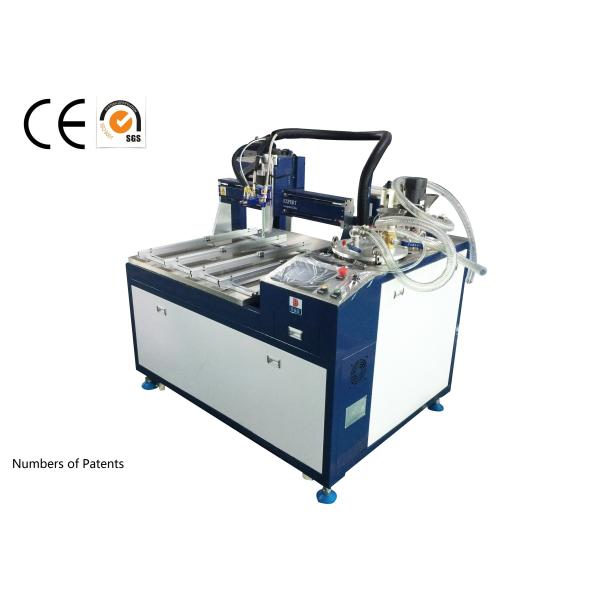

Automatic glue dispensing machine PGB-700

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

High Accuracy Automatic Silicone Epoxy PU CNC 2 Part Epoxy Dispensing Equipment

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

High Accuracy Automatic Silicone Epoxy PU CNC 2 Part Epoxy Dispensing Equipment

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type	PGB-700 Full Auto Gluing Machine Dispenser
Certificate	CE, SGS
Dimension	1500x1200x1500mm
N.W.	260kg
XYZ Working Area	700x700x80mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V
Total Power Consume	3kw - 5kw
Additional Function	Heating, Vacuum, Self-refilling, Self-cleaning
Application	LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
